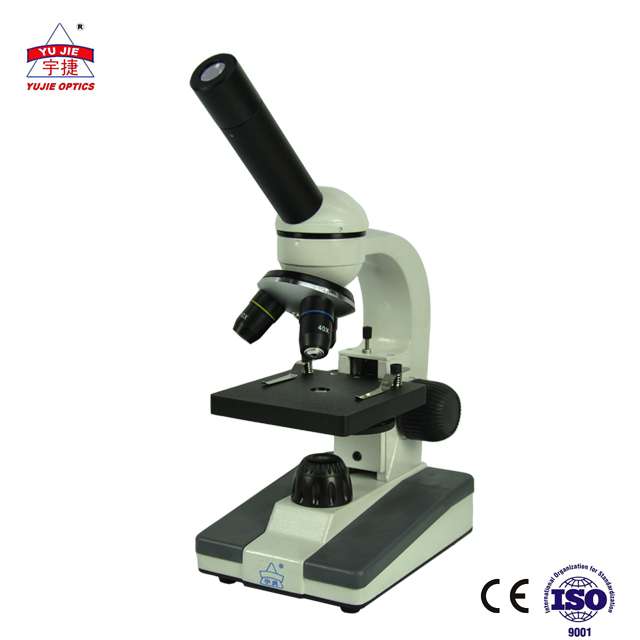

YJ-23
2024-09-06 16:03:08 Click: 6339
Production Description
![]() |
|
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X |
| Objective | Achromatic Objectives: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, fixed head |
| Stage | Single Stage with Clips: 95X95mm |
| Condenser | Single Lens Condenser: N.A.0.65; Six-stop Dial Diaphragm |
| Focusing Adjustment | Coarse Focusing Adjustable Mechanism: 14mm |
| Illumination | LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
| Net Weight | 1.5kg |
Package
1set/Foam + Inner Carton
6sets/Outer Carton, Gross Weight: 12KG
Carton Dimension: 55X49X38cm
