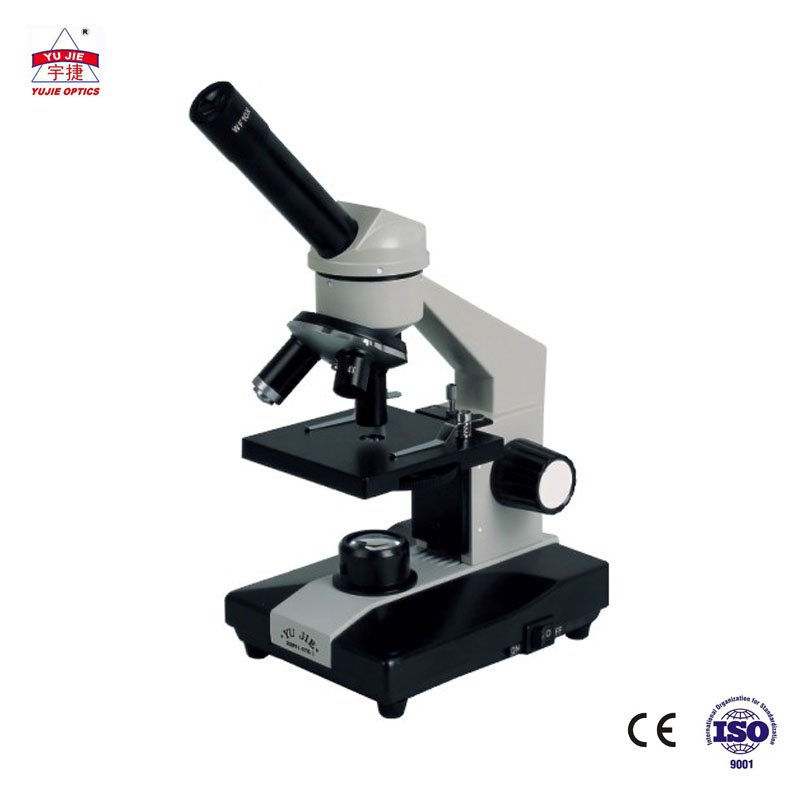

YJ-9107E-1
2020-01-17 16:36:15 Click: 3658
This series microscope is a basic model and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
Package
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X；Total Magnification: 40X-400X |
| Objective | Achromatic Objective: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360° Rotatable |
| Stage | Plain Stage With Paired Clips: 90X90mm |
| Condenser | Single Lens Condenser: N.A.0.65; Six-Stop Dial Diaphragm |
| Focusing Adjustment | Coarse Focusing Adjustable Mechanism: 8mm |
| Illumination | Built-in illumination 20W Incadescent Lamp or LED Lamp |
| Optional | 1.WF16X 2.Rechargeable Batteries |
| Net Weight | 1.5kg |
1set/Foam + Inner Carton
10sets/Outer Carton, gross weight: 20KG
Carton Dimension: 81X45X36cm
