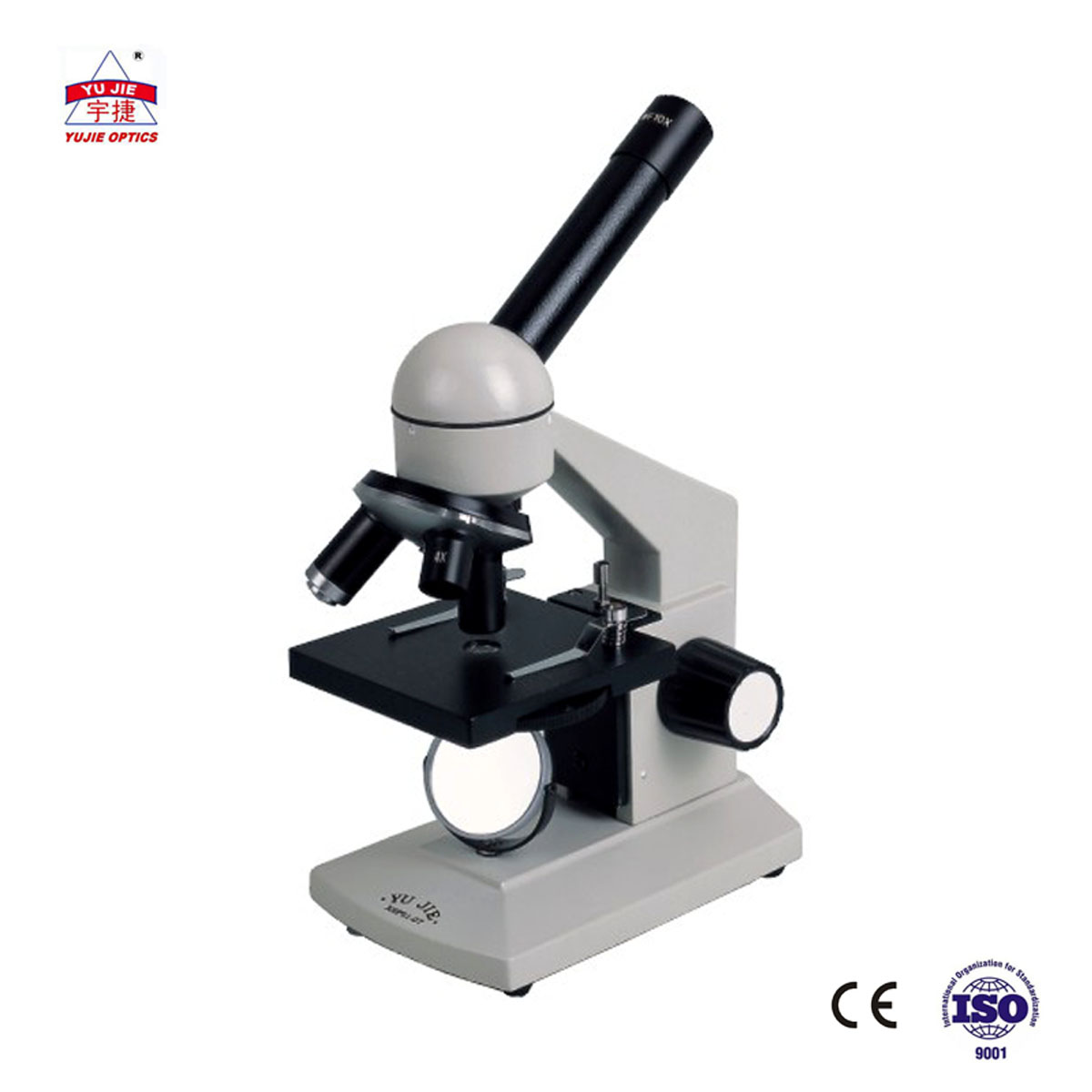

YJ-9107
2020-01-17 16:40:22 Click: 4721
This series microscope is a basic model and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X；Total Magnification: 40X-400X |
| Objective | Achromatic Objective: 4X,10X,40X(S) |
| Head | Fix monocular Head, 38°Inclined |
| Stage | Plain Stage With Paired Clips: 90X90mm |
| Condenser | Single Lens Condenser: N.A.0.65; Six-Stop Dial Diaphragm |
| Focusing Adjustment | Coarse Focusing Adjustable Mechanism: 8mm |
| Illumination | Φ42mm Concave Reflector |
| Optional | WF16X |
| Net Weight | 1.1kg |
Package
1set/Foam + Inner Carton
10sets/Outer Carton, gross weight: 16KG
Carton Dimension: 77X42X32cm
