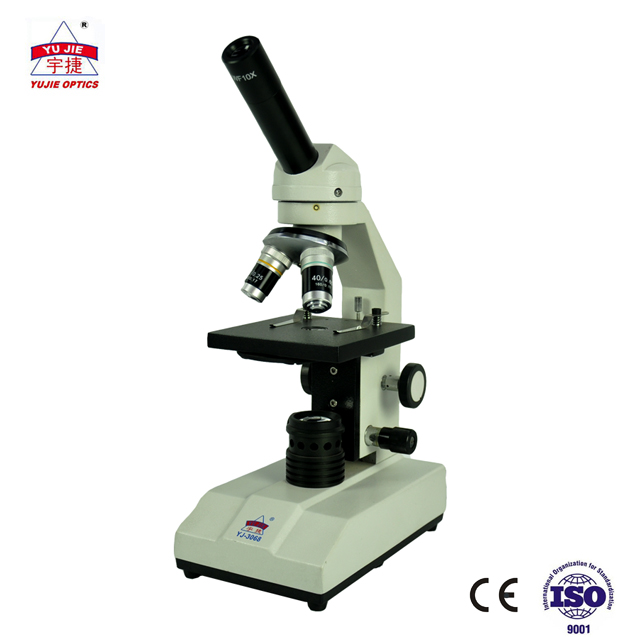

YJ-3068
2019-04-12 14:51:23 Click: 4291
This series microscope is a basic model and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm；Total Magnification: 40X-640X |
| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360°Rotatable |
| Stage | Plain Stage With Paired Clips: 110X120mm |
| Condenser | Single Lens Condenser: N.A.0.65; Five-Stop Dial Diaphragm |
| Focusing Adjustment | Separated Coarse and Fine Focusing Adjustable Mechanism: 12mm/2mm |
| Illumination | Optional: 6V/20W Halogen Lamp, LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
| Net Weight | 2.9kg |
Package
1set/Foam + Inner Carton
4sets/Outer Carton, gross weight: 15KG
Carton Dimension: 54X37X42cm
