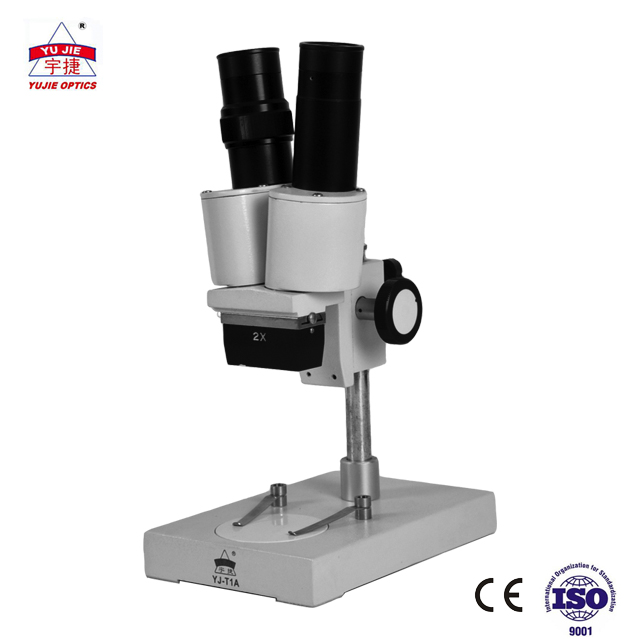

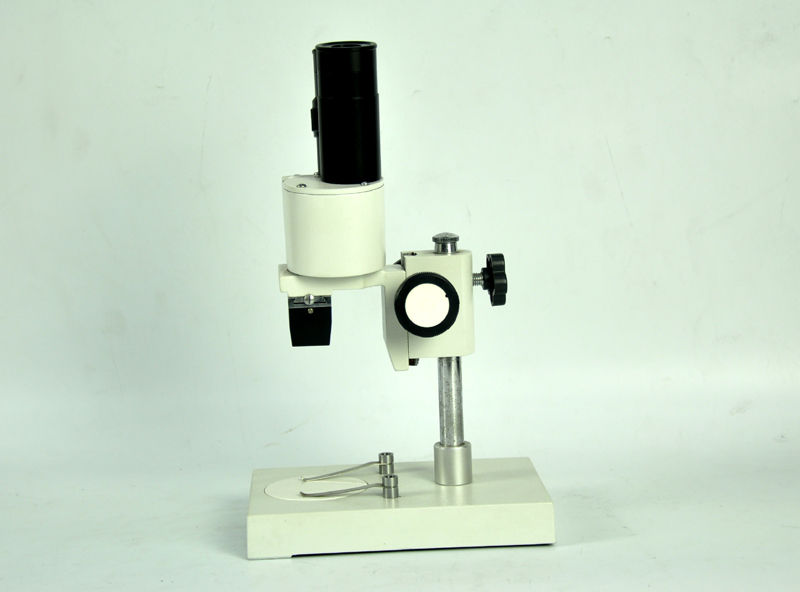

YJ-T1A
2019-04-30 12:24:22 Click: 4093
This series microscope is a basic two-steps fixed stereo microcsope. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Choose Any One From 1X, 2X, 3X and 4X, Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Vertical Articulated Free Binocular Head, Interpupillary Distance: 55-75mm |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque |
| Arm Type | Pole |
| Illumination | Natural Light For Illuminating Gathered By Ф60mm Black-white Reversible Stage Plate |
| Optional | 1.WF15X, WF20X; |
| Net Weight | 1.3kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 7kg
Carton Dimension: 61X35X36cm
